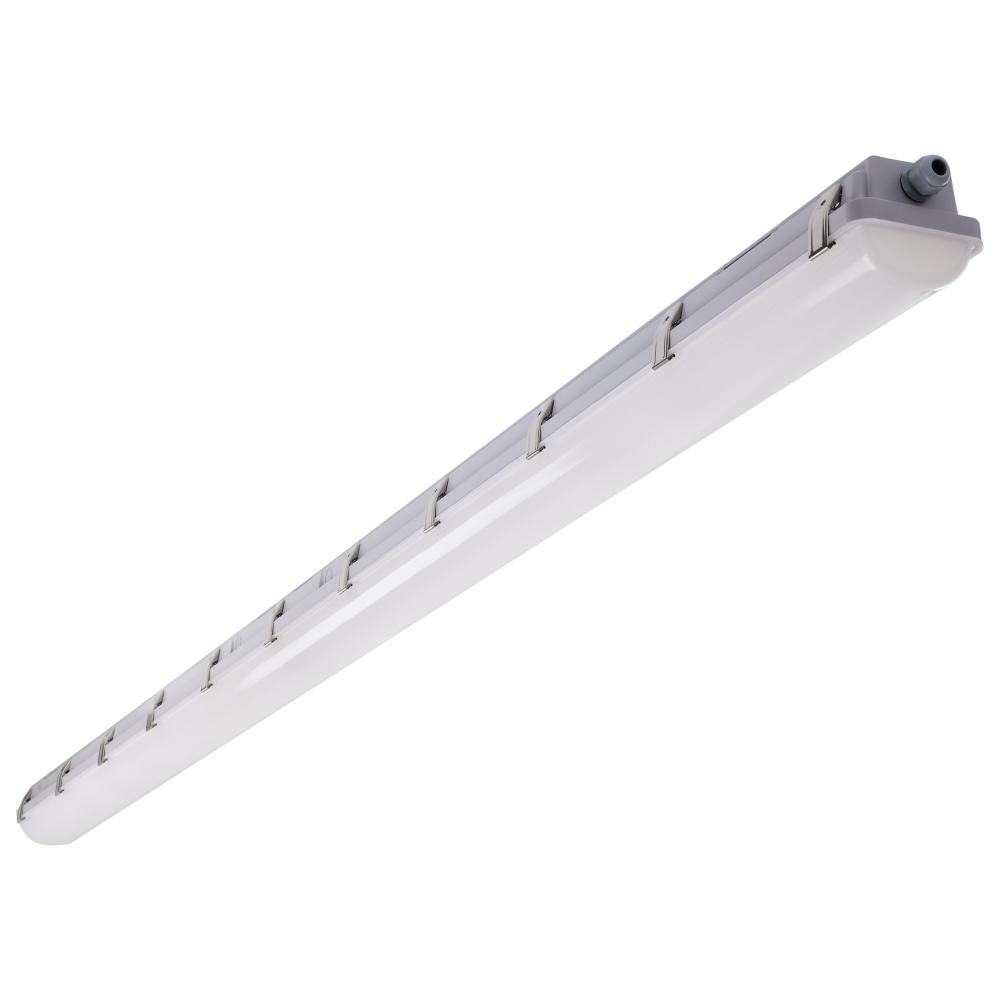

8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; : A673Z

Return to Catalog

Part Number: A673Z / Vendor ID #: 81

8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming;

$362.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 36 items available.

Dimensions

Height: 3.46"

Width: 4.33"

Product Overview

8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Gray

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

4.33

Each Length:

96.45999999999999

Each Width:

5.12

Length:

94.48999999999999

Lumens:

6400L-9360L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Amps:

0.417-0.144/0.500-0.173/0.600-0.207A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Thailand

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard; Standard

DLC Primary Use:

Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires

Each Cube:

1.2375

Each Quantity:

Efficacy:

128.00/131.33/130.00 LPW

FCC Compliant:

Yes

Feature 1:

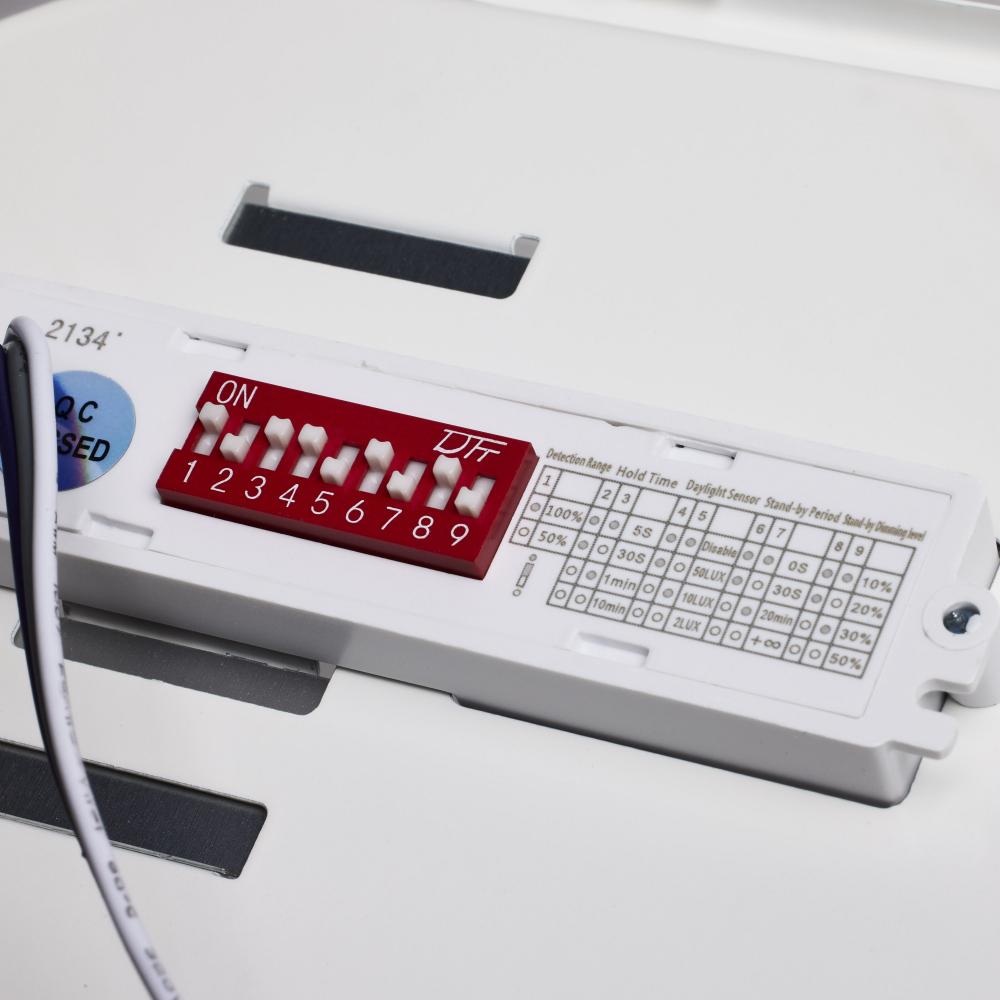

Field Selectable - 3 CCT and 3 Wattage

Feature 2:

8 foot

Feature 3:

Vapor Proof Model

Feature 4:

120-347 Voltage

Feature 5:

Durable, Gray Polycarbonate Material

Feature 6:

IP65 & IK08 Rated

Feature 7:

Wet Location Rated

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

HID Equiv:

150W-200W

Impact Rating (IK):

IK08

Incandescent Equivalent:

400W-500W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO NUVO 65-822R1 8 foot Vapor Proof LED fixture provides dependable illumination for large-scale and demanding spaces. Offering selectable wattages of 50W, 60W, or 72W and 3 CCT selectable options, it delivers maximum flexibility in one fixture. Con

Material:

Polycarbonate (PC)

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

8' LINEAR VAPOR PROOF

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

14.20%

Wattage Selectable:

Yes

Weight Lb.:

11.91
