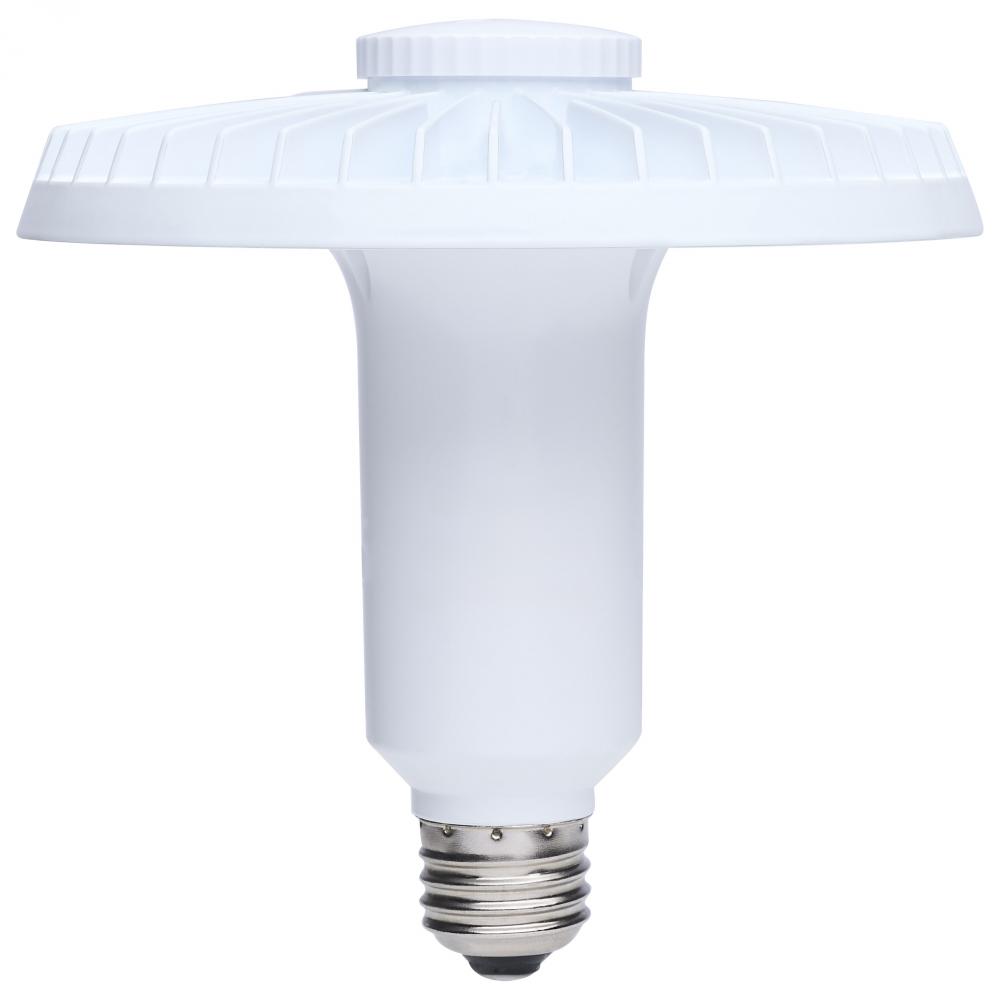

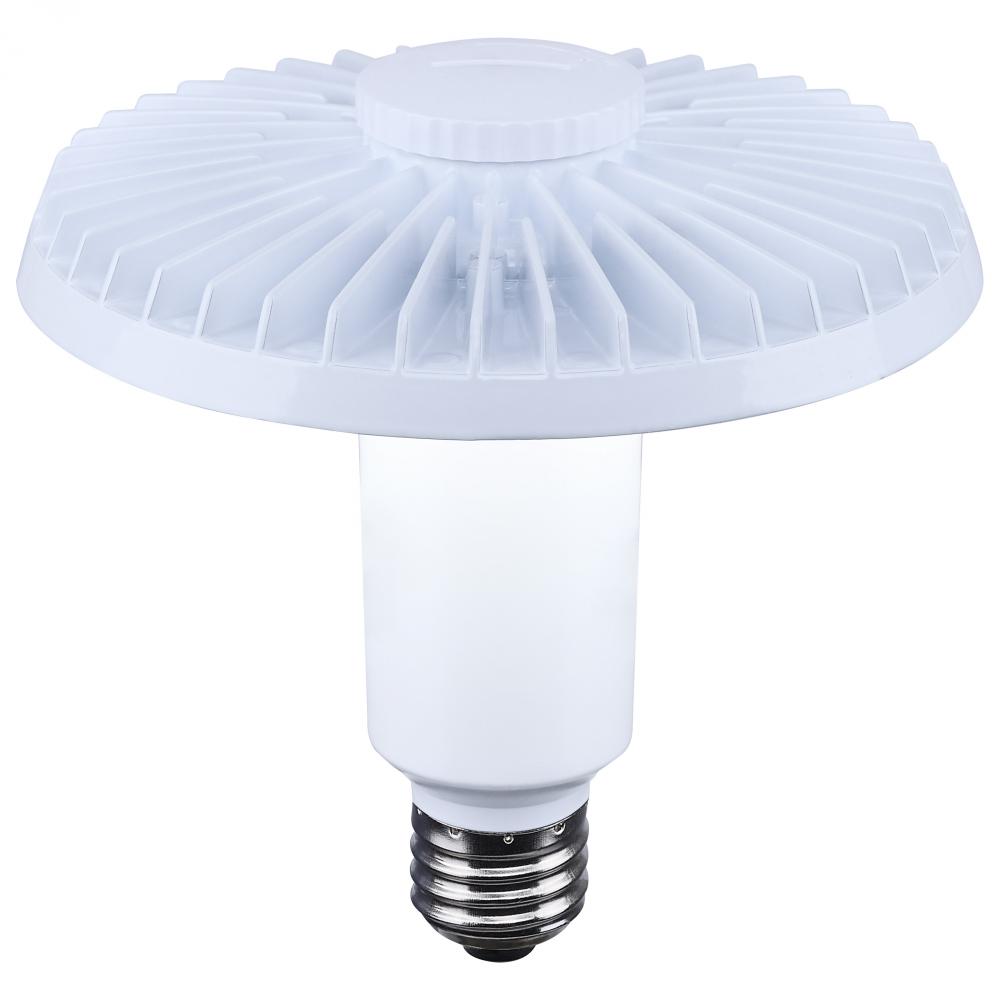

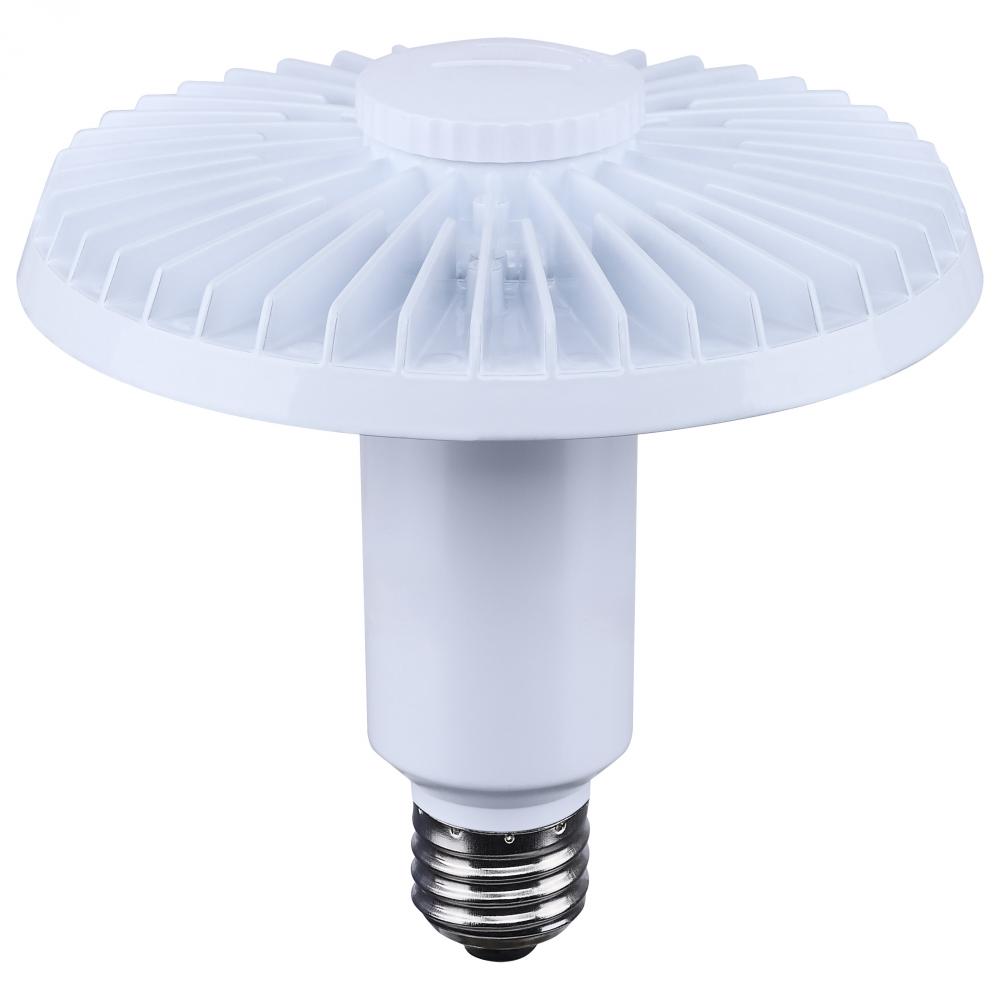

40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 : X9Q59

Return to Catalog

Part Number: X9Q59 / Vendor ID #: 27

40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277

$69.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1490 items available.

Dimensions

Width: 5.69"

Product Overview

40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

5.69

EA Length:

6.69

Harmonized Codes:

8539.52.0091

Length:

5.68

Lumens:

5800L-6400L/4350L-4800L/2900L-3200L

Shap Carton Width:

6.69

Ship Carton Height:

7.05

Ship Weight:

1.95

Warranty:

5-Years

Weight:

1.04

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

120

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Base Down

Carton Cubic Feet:

0.1826

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Natural Light

Country Of Origin:

Malaysia

CRI:

Dimmable Function:

Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.

Dimming Type:

Step Dimming

DLC Approved:

Efficacy:

145.00/160.00/152.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 2:

20/30/40 Wattage Selectable

Feature 3:

Helps Control Light Pollution

Feature 4:

Downward Directional Lighting

Feature 5:

Enclosed fixture rated

Feature 6:

IP65 Watertight Seal Cap

Feature 7:

4kV Surge Protection

Feature 8:

50,000 Hour Functional Life

Feature 9:

5 Year Warranty

Has Camera:

Has Emergency Battery:

HID Equivalent:

150W-175W

Housing Color:

White

Indoor Outdoor:

Indoor and Outdoor

IOT Enabled:

IP Rating:

IP65

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Translucent

Lens Material:

Polycarbonate (PC)

Location Rating:

Wet

Long Description:

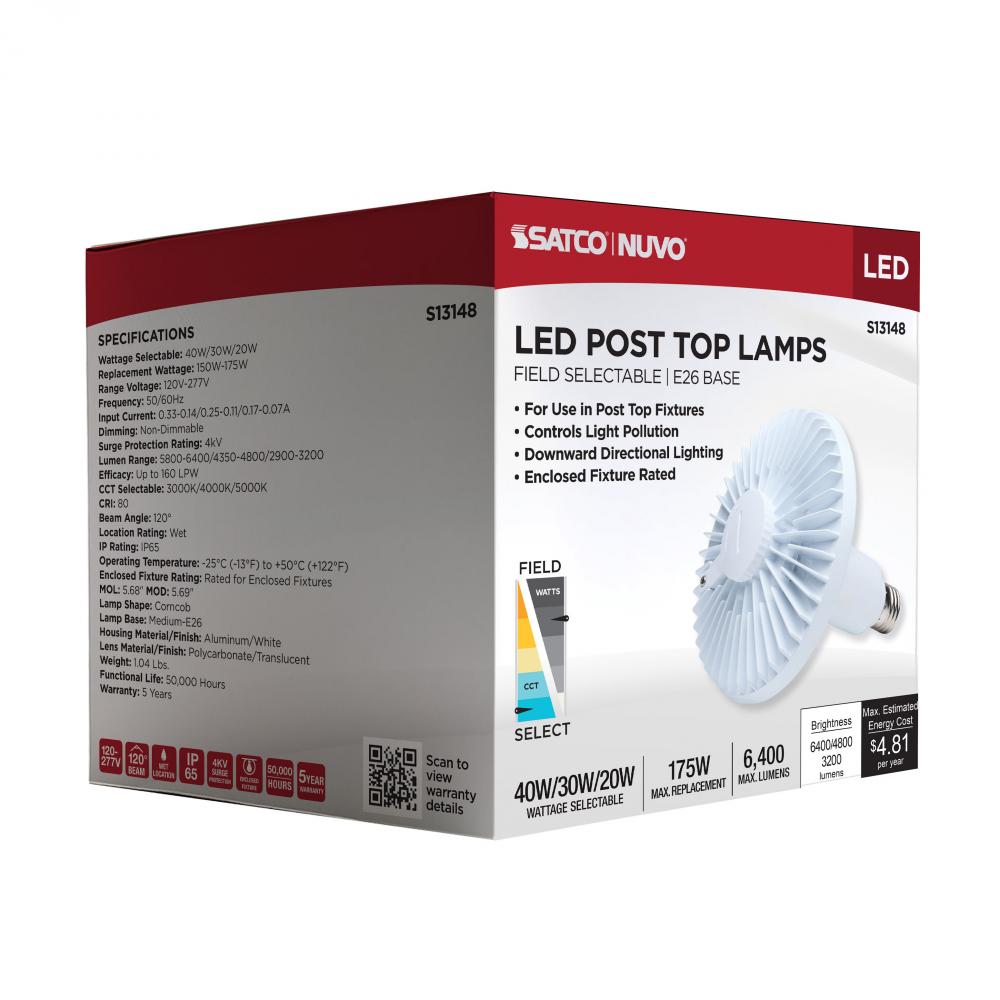

Illuminate outdoor spaces with SATCO NUVO's S13148 LED post top lamp. Featuring an E26 base, 20/30/40 wattage selection, and 2,900–6,400 lumens, it enhances visibility while reducing light pollution. Improved light shielding and a downward beam minim

Material:

Aluminum

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +50C (+122F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

Illuminate outdoor spaces using SATCO NUVO's new LED post top lamps, crafted to enhance visibility while helping to reduce light pollution. Designed with improved light shielding and a downward directional beam, these lamps minimize up light and elimin

SDS class:

LED_Lamp

Short Description:

40HID/L/CCT3/E26/B/U

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

40W/30W/20W
