38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; : X9P68

Return to Catalog

Part Number: X9P68 / Vendor ID #: 27

38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face;

$102.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 215 items available.

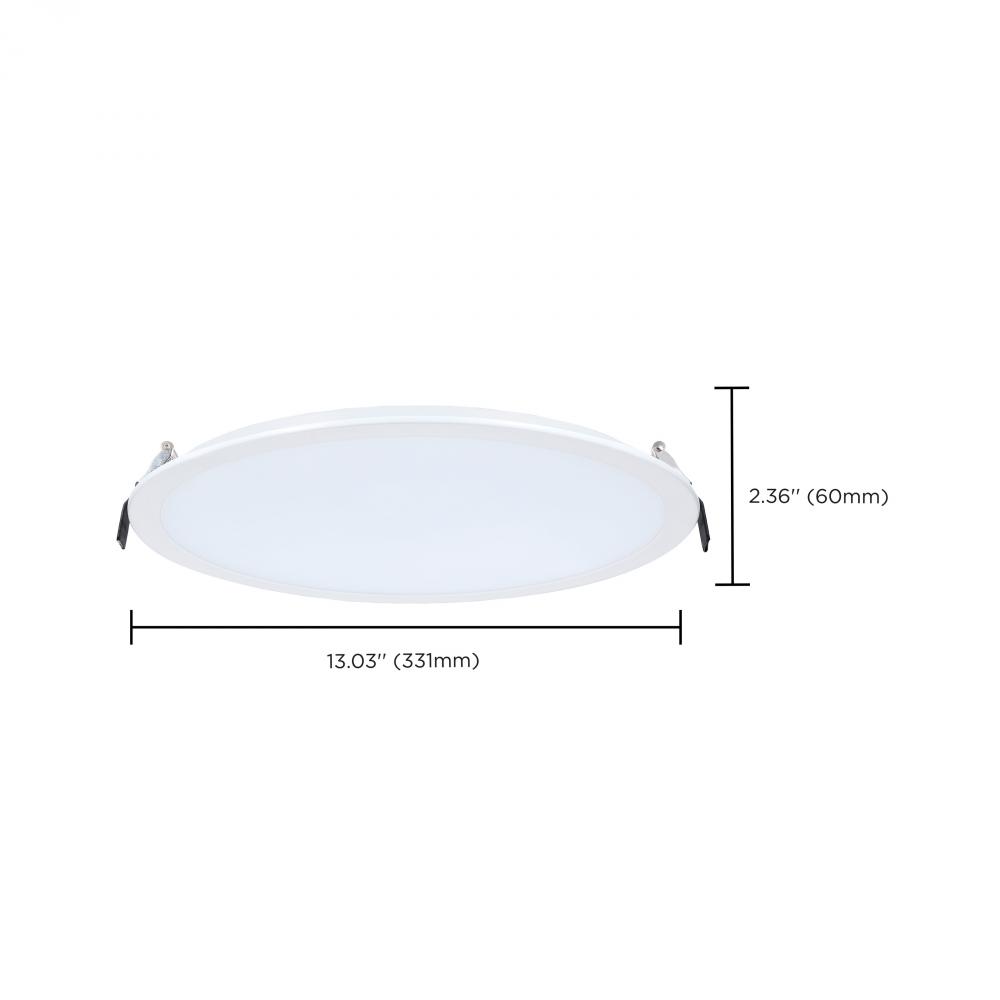

Dimensions

Height: 2.36"

Width: 13.03"

Product Overview

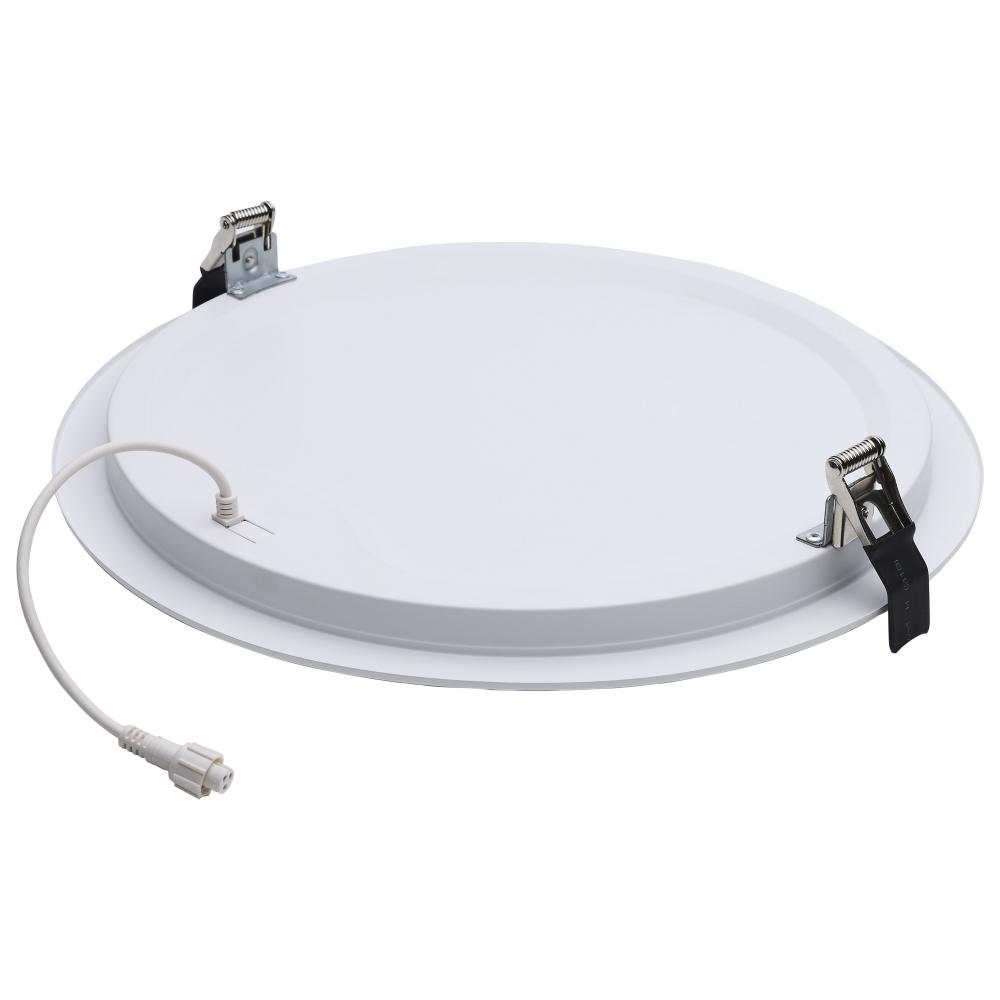

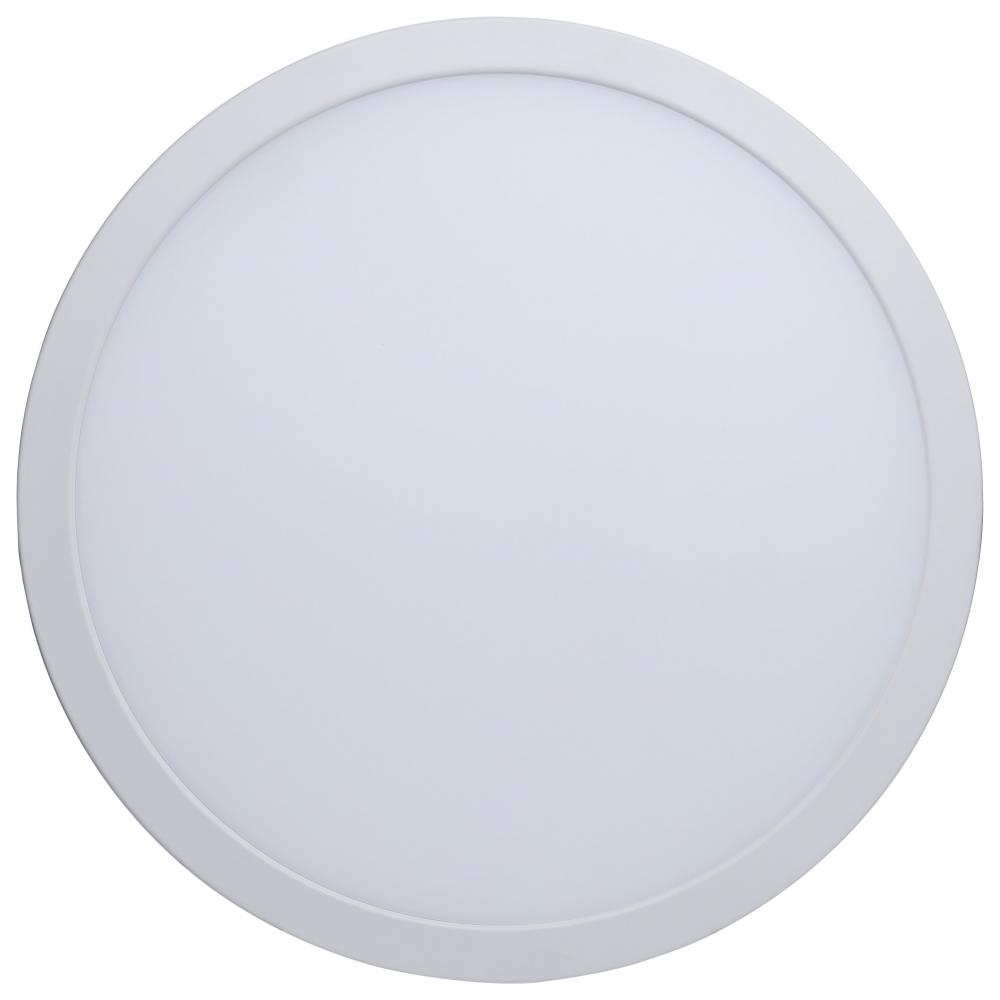

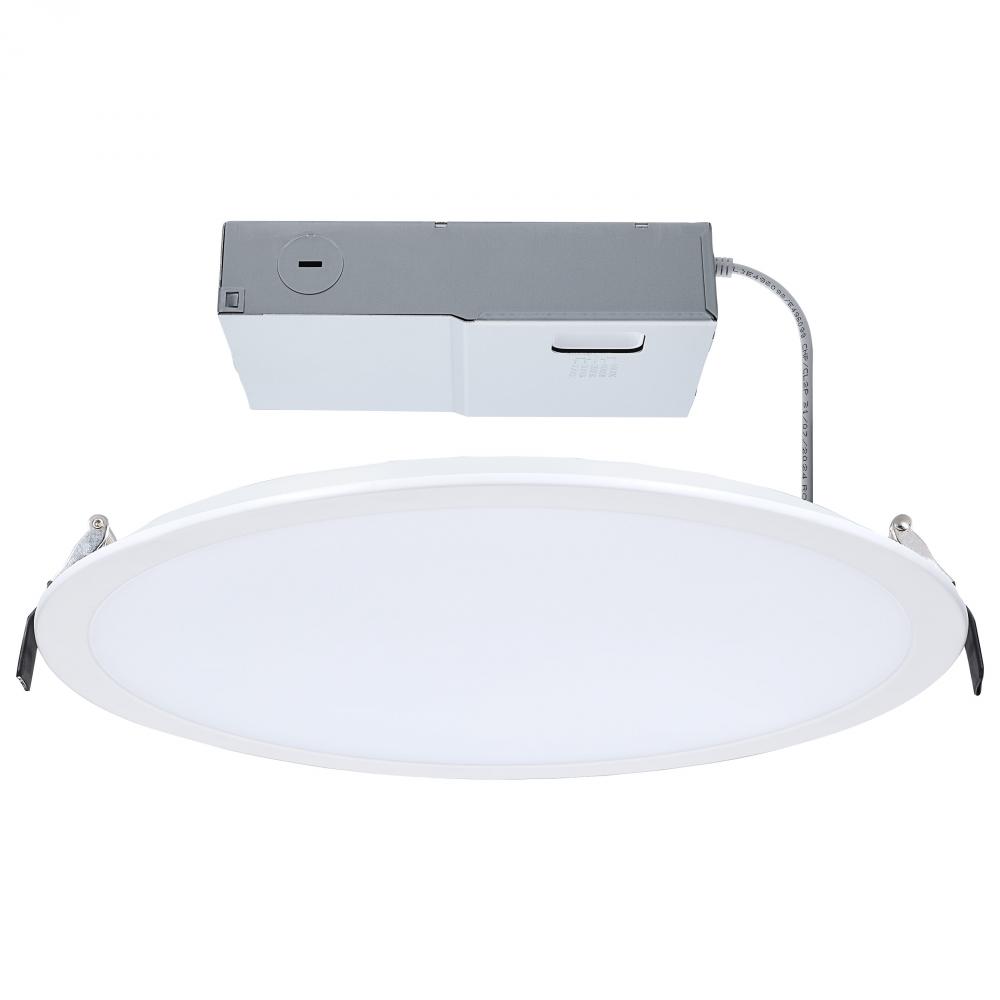

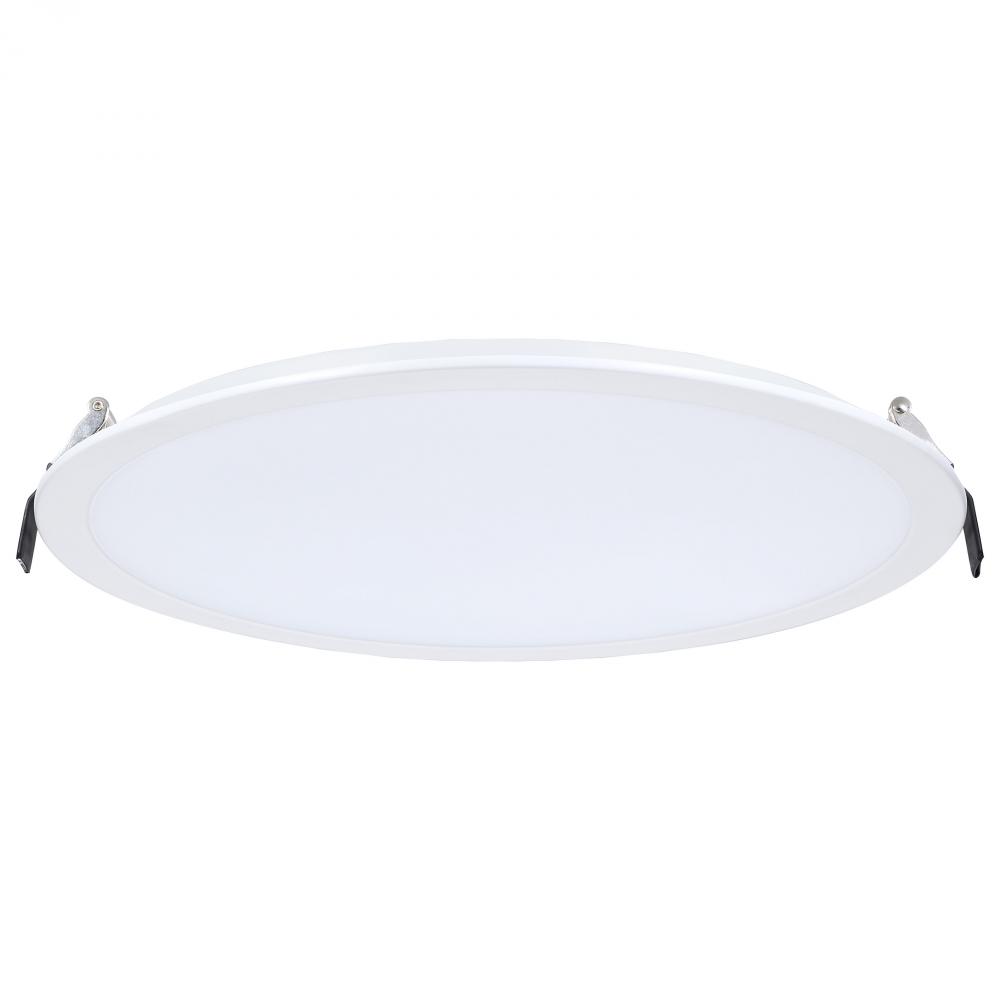

38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; Round; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

13.03

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

4000L

Ship Carton Height:

13.15

Ship Carton Length:

13.7

Ship Carton Width:

2.95

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.360A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

110

CA Prop-65:

Lead

Can Size:

12 in.

Carton Cubic Feet:

0.3076

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

Cambodia

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Triac at 120V / 0-10V at 120-277V

Dimming Type:

Dual Dimming

Efficacy:

105.26 LPW

FCC Compliant:

Yes

Feature 1:

12-inch Diameter

Feature 10:

FT6 Cable Included for Commercial Plenums

Feature 2:

Dual Dimming

Feature 3:

4000 Lumens

Feature 4:

38W

Feature 5:

Wet Location Rated

Feature 6:

AT Rated

Feature 7:

Suitable for Bathrooms

Feature 8:

90 CRI

Feature 9:

5 CCT Selectable

Finish Family:

White

Fixture shape:

Round

Has Camera:

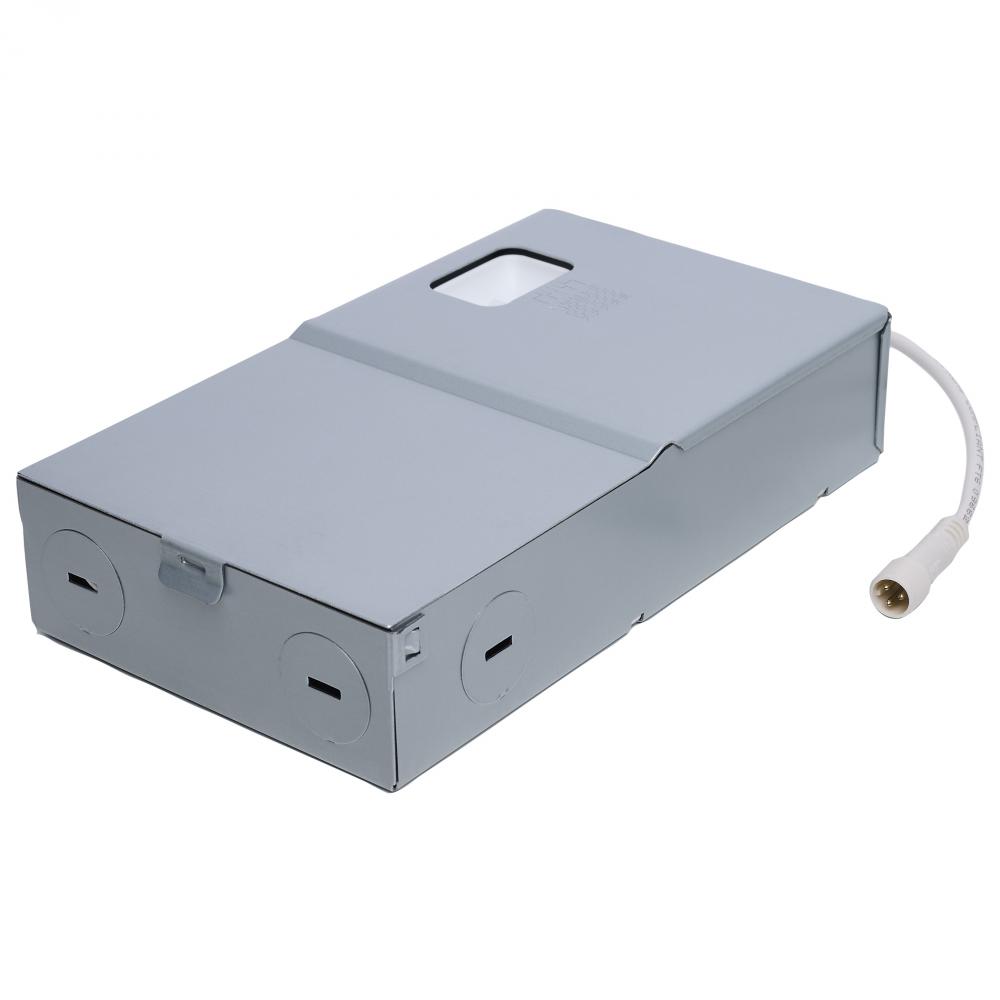

Has Driver:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

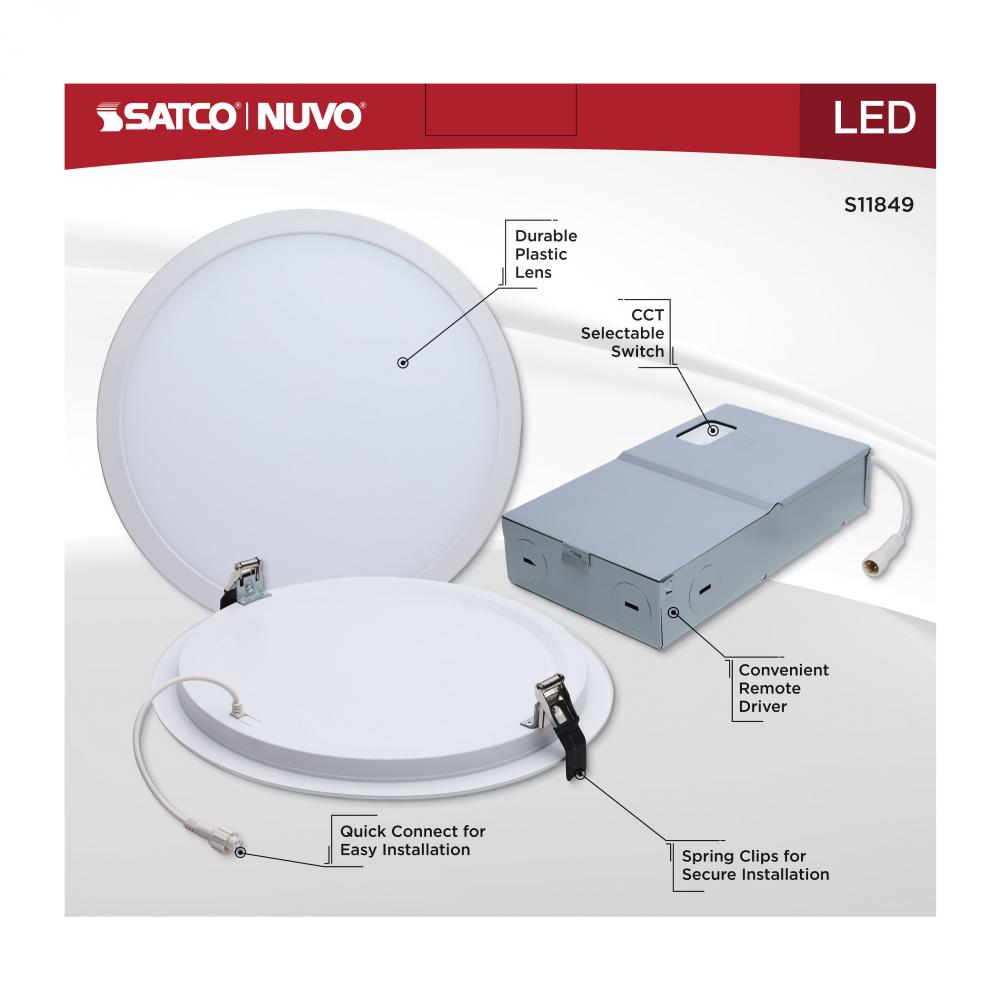

SATCO NUVO's S11849 LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide 12-inch diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation

Material:

Steel

Mounting Diameter:

Mounting Height:

3.94

Operating Frequency:

50/60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation to create the

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

38WLED/DW/12/CCT/RND/FL/DD

Sloped Ceiling Compatible:

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Steel

Wattage Selectable:

Weight Lb.:
