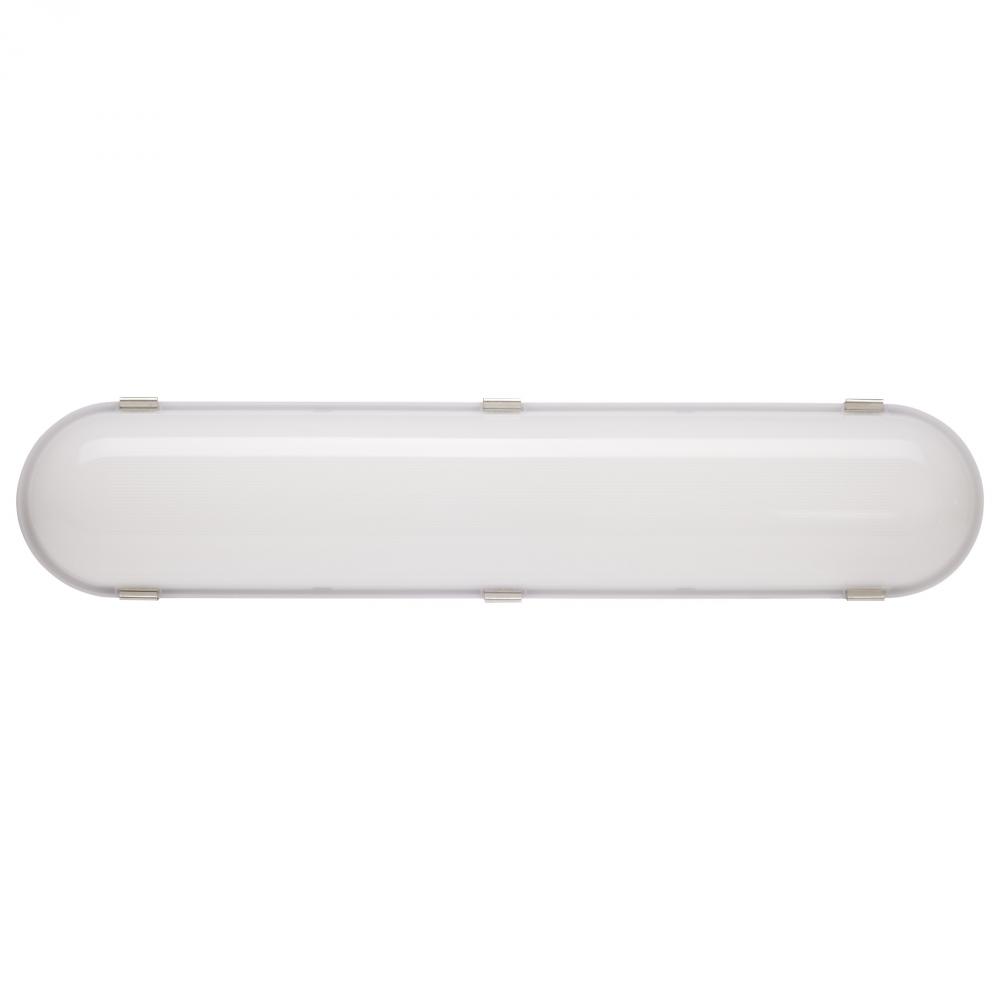

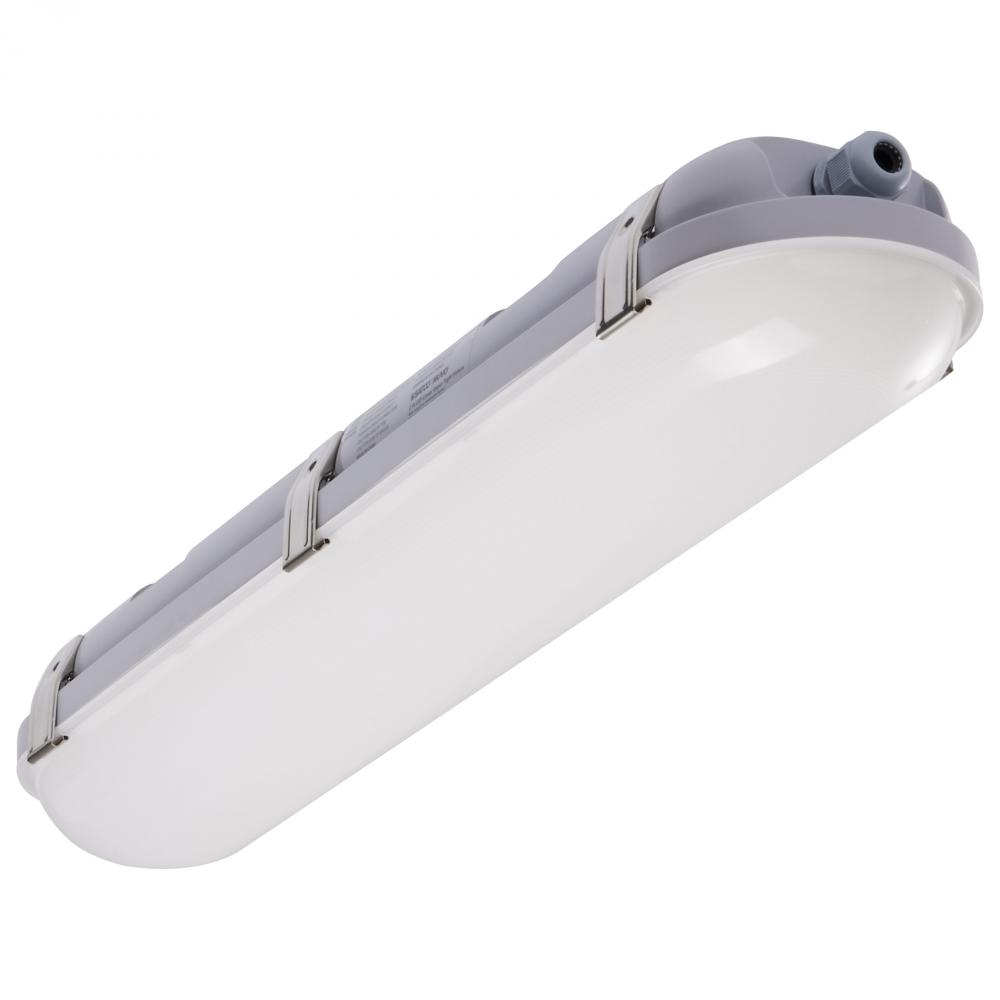

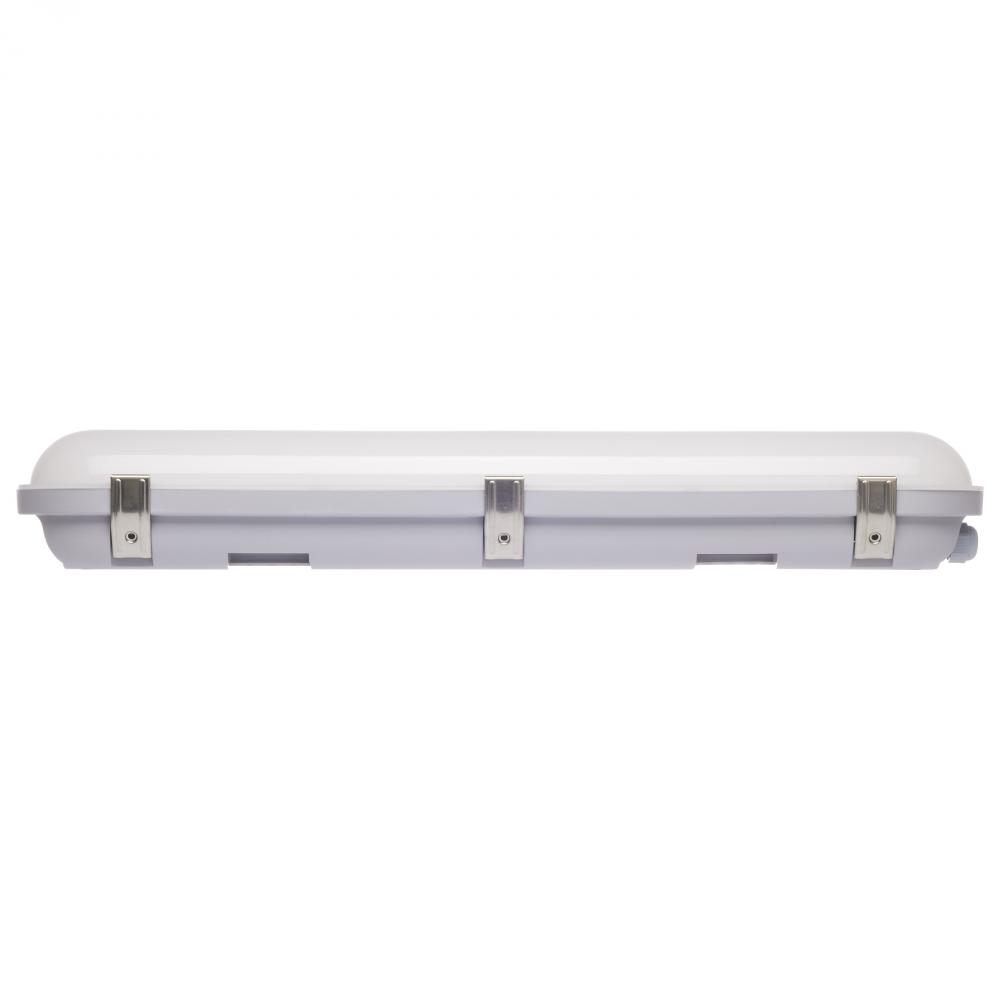

20 Watt LED 2 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt : AD6LZ

Return to Catalog

Part Number: AD6LZ / Vendor ID #: 81

20 Watt LED 2 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt

$210.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 330 items available.

Dimensions

Height: 3.54"

Width: 4.84"

Product Overview

20 Watt LED 2 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

LED

Prop 65

Refinement Options

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Additional Info:

90 Minute Battery Backup Runtime

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Soft White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

3.74

Each Length:

25.2

Each Width:

5.12

Length:

23.62

Lumens:

2164L-2505L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Amps:

0.167-0.058A

ANSI Base:

Integrated

BAA Compliant:

Battery Chemistry:

LiFePO4

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 SBCS Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Thailand

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard

DLC Primary Use:

Direct Linear Ambient Luminaires

Each Cube:

0.2793

Each Quantity:

Efficacy:

108.20/116.73/125.25 LPW

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 2:

2 foot

Feature 3:

Vapor Proof with Emergency Backup

Feature 4:

120-347 Voltage

Feature 5:

Durable, Gray Polycarbonate Material

Feature 6:

IP65 & IK08 Rated

Feature 7:

Wet Location Rated

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

Yes

HID Equiv:

50W

Impact Rating (IK):

IK08

Incandescent Equivalent:

125W

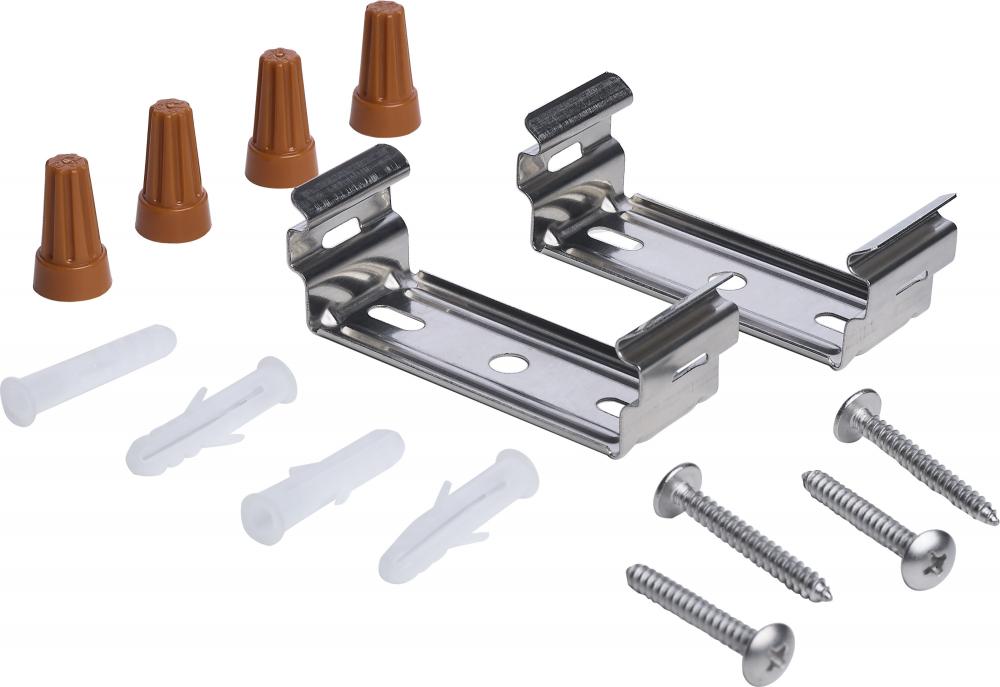

Includes:

Mounting Hardware

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO NUVO 65-836 2 foot Vapor Proof LED fixture combines durability with critical performance capability. Operating at 20 watts and offering 3 CCT selectable options, it delivers dependable illumination with flexibility. An integrated emergency batter

Material:

Polycarbonate (PC)

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Kraft Box

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

2' LED EM LINEAR VAPOR PROOF

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Total Harmonic Distortion:

10.30%

Wattage Selectable:

Weight Lb.:

3.09
